World-class manufacturing facility to cater to the aviation industries

SKY HIGH QUALITY

Capabilities

Following machineries are the strength of manufacturing….

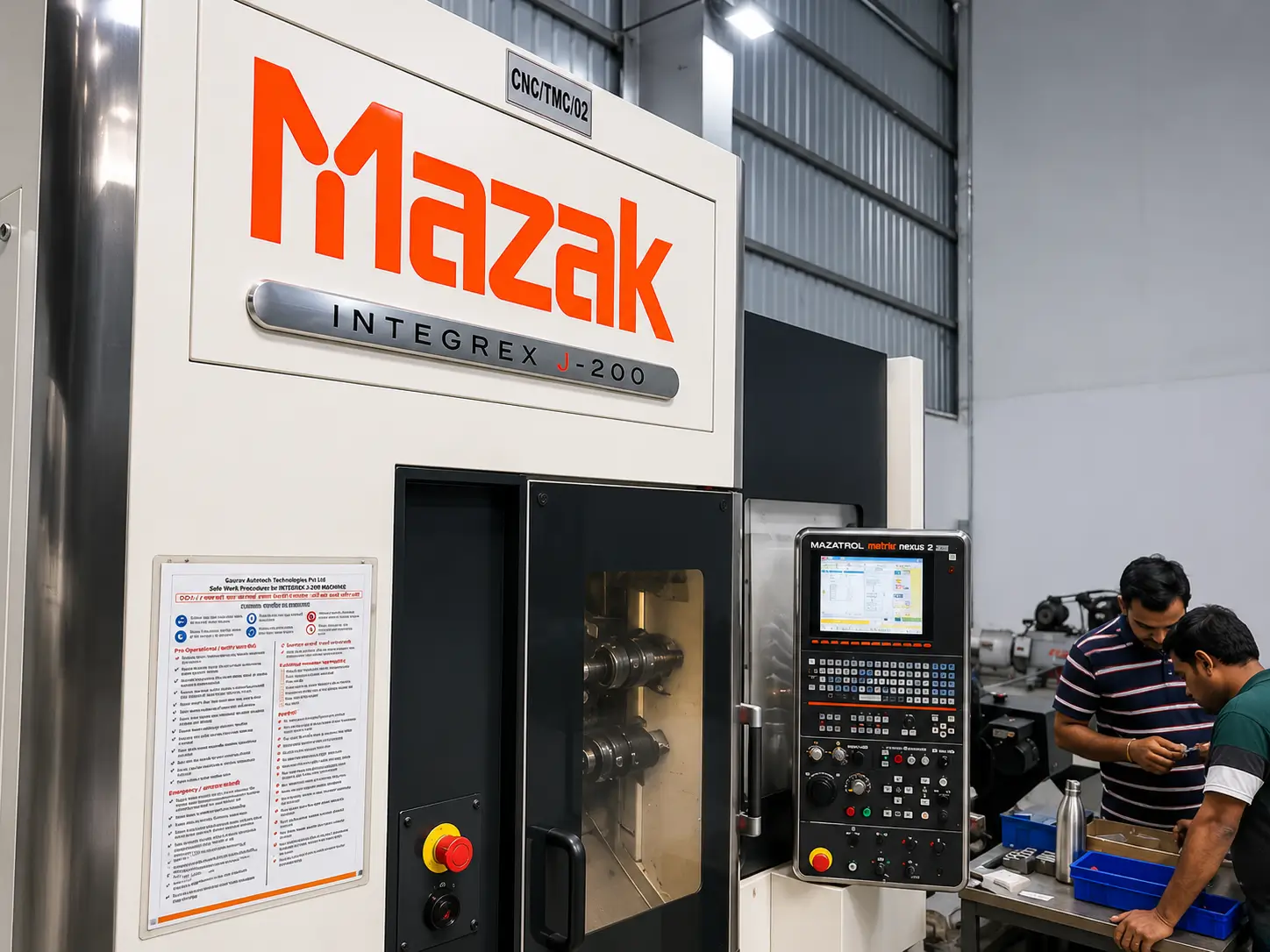

  • MAZAK, INTEGREX, J-200 5-Axis Multi Tasking Machine

    Machine Description:

    Designed to provide maximum value, the INTEGREX j-200 provides an option for increasing processing flexibility while offering a cost-effective alternative for those seeking accurate turning, and angular milling capability. In addition to automatic tool changing, a large machining area, and convenient operation – the j-series fills the demand for a robust, multi-tasking machine to deliver on a wide variety of production requirements.

    Machine Specifications:
    Specification Bed Length - 500U in Bed Length - 1000U in
    Capacity Maximum Swing 530 mm / 20.87 in 530 mm / 20.87 in
    Maximum Machining Diameter 500 mm / 19.690 in 500 mm / 19.690 in
    Maximum Bar Work Capacity 65 mm / 2.6 in 65 mm / 2.6 in
    Maximum Machining Length 500 mm / 19.690 in 1016 mm / 40.000 in
    Main Spindle Chuck Size 8 in 8 in
    Maximum Speed 5000 rpm 5000 rpm
    Motor Output (30 minute rating) 11 kw / 15.0 hp 11 kw / 15.0 hp
    Milling Spindle B-Axis Travel 220° 220°
    Magazine Capacity 20 20
    Maximum Speed 12000 rpm 12000 rpm
    Motor Output (20 ED Rating) 4 kw / 5 hp 4 kw / 5 hp
    Feed Axes Travel (X Axis) 450 mm / 17.72 in 450 mm / 17.72 in
    Travel (Y Axis) 200 mm / 7.87 in 200 mm / 7.87 in
    Travel (Z Axis) 550 mm / 21.65 in 1225 mm / 48.00 in
    Travel (W Axis) 478 mm / 18.82 in 968 mm / 38.11 in

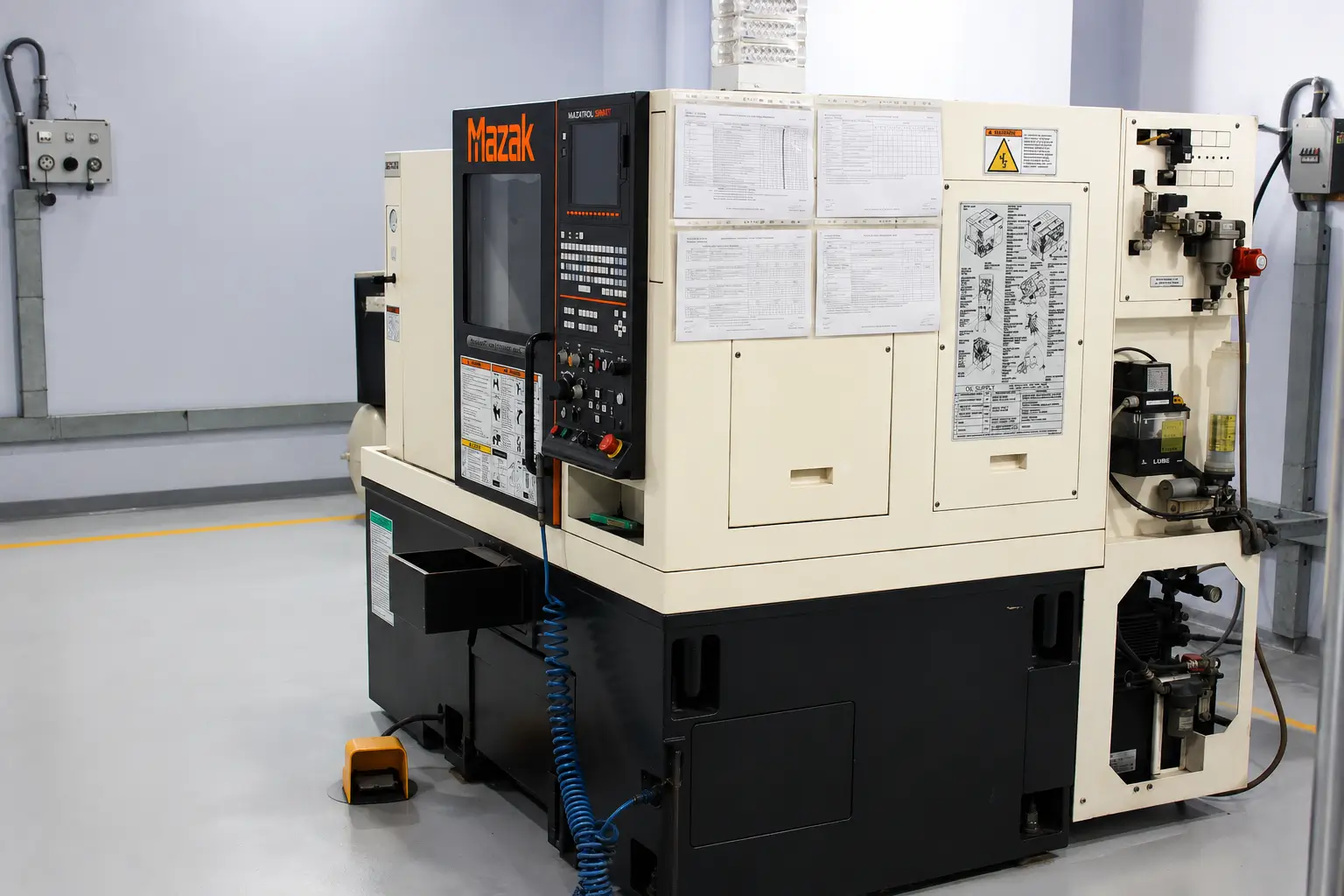

  • MAZAK, Quick Turn Smart, QTS-150S (300U)

    Specification Bed Length - 300U in Bed Length - 500U in
    Capacity Maximum Swing 580 mm / 22.83 in 580 mm / 22.83 in
    Maximum Machining Diameter 330 mm / 13.000 in 330 mm / 13.000 in
    Maximum Bar Work Capacity 51 mm / 2.0 in 51 mm / 2.0 in
    Maximum Machining Length 285 mm / 11.160 in 520 mm / 20.410 in
    Main Spindle Chuck Size 8 in 8 in
    Maximum Speed 5000 rpm 5000 rpm
    Motor Output (30 minute rating) 15 kw / 20.0 hp 15 kw / 20.0 hp
    Turret (Upper) Number of Tools 8 8
    Feed Axes Travel (X Axis) 200 mm / 7.87 in 200 mm / 7.87 in
    Travel (Z Axis) 335 mm / 13.13 in 560 mm / 22.00 in
  • Peripheral Supporting Machineries

Additional Facilities:

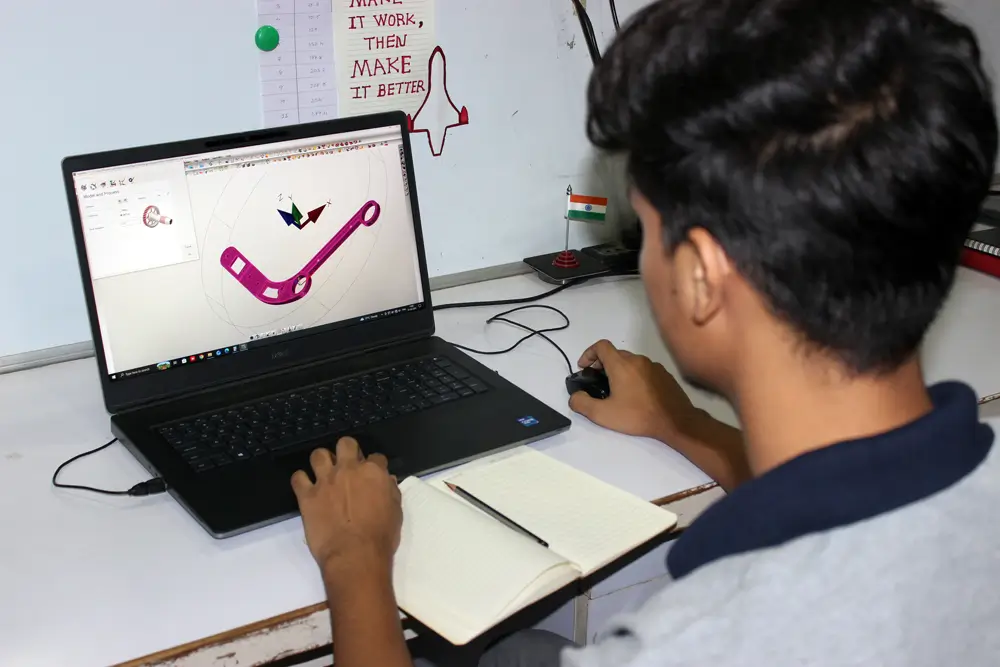

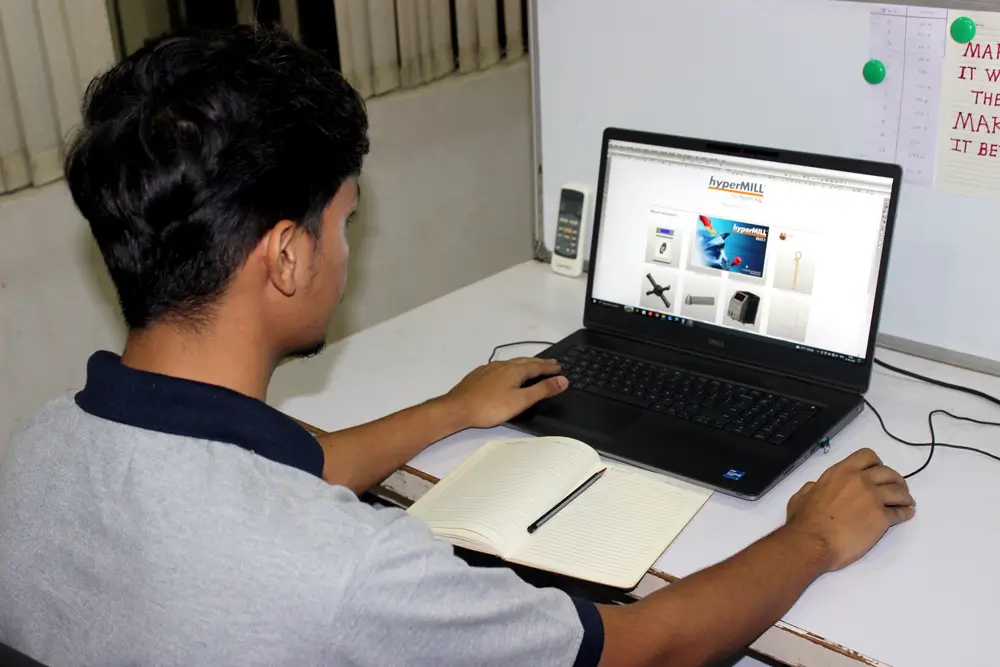

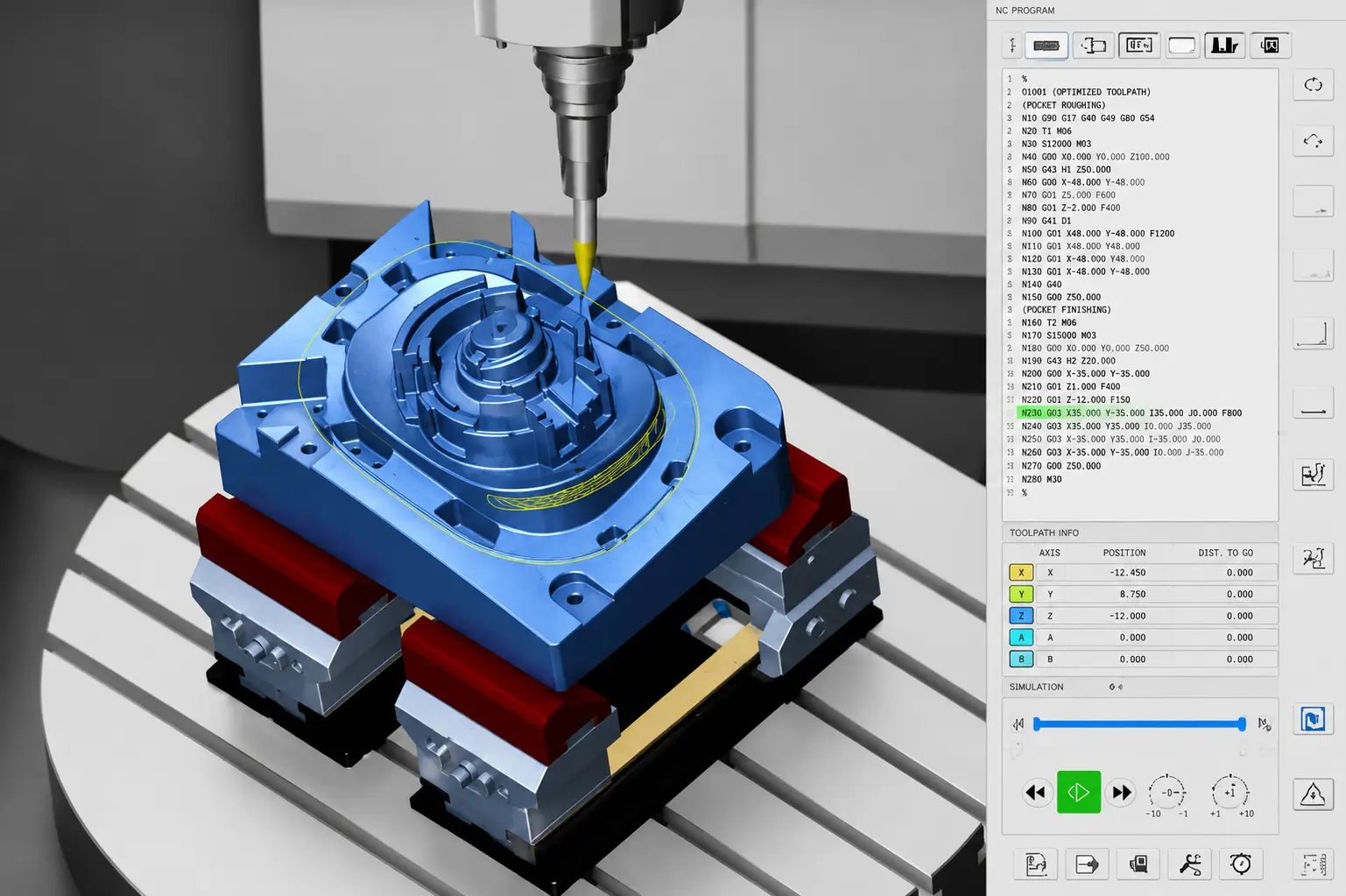

  • CAD-CAM, covering and facilitating almost any extension of CAD drawings.

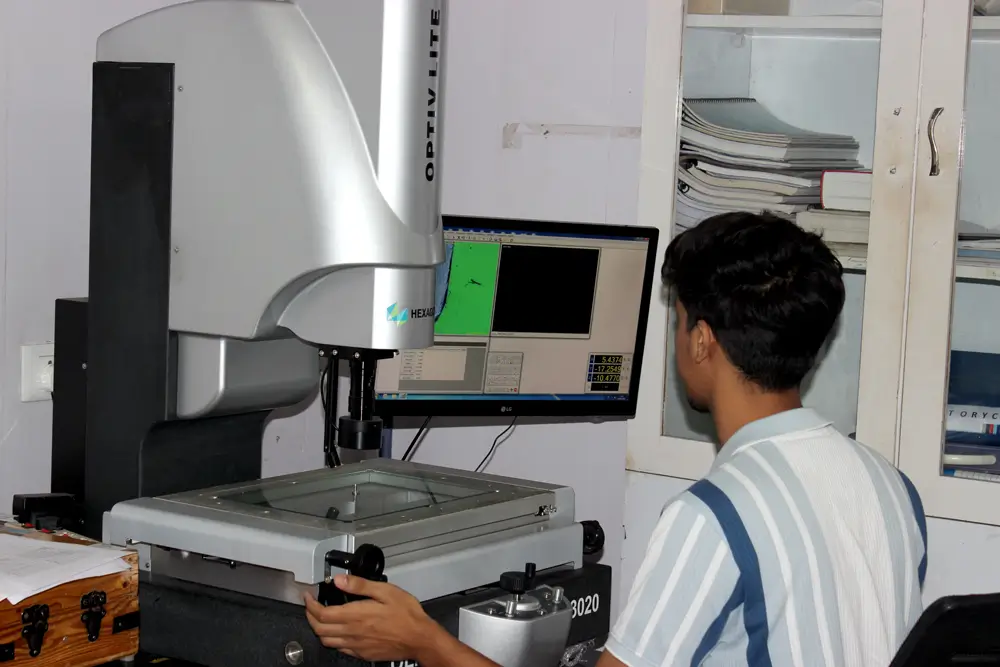

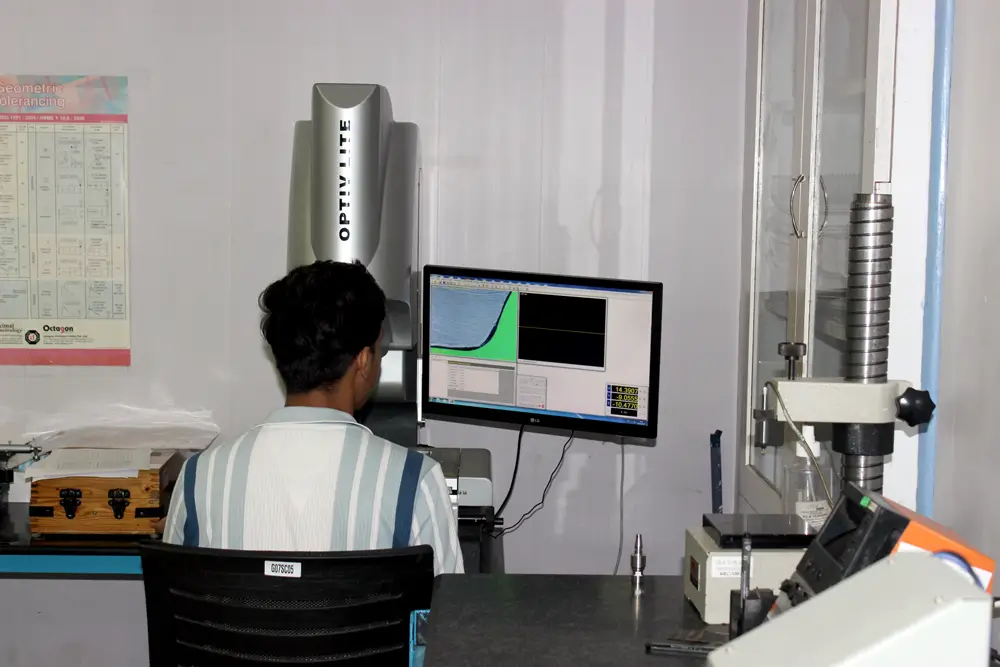

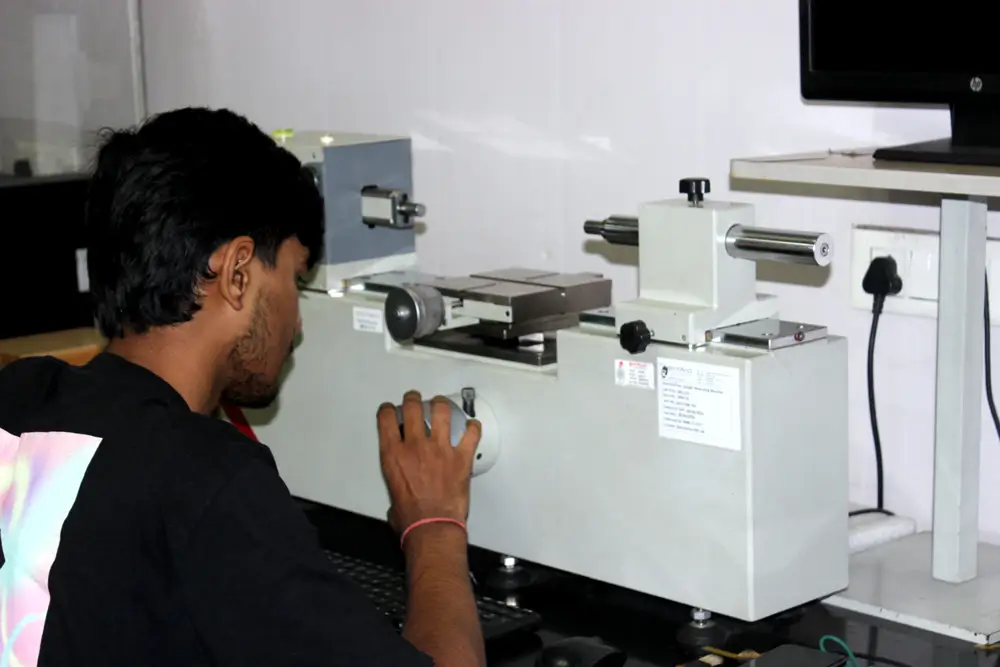

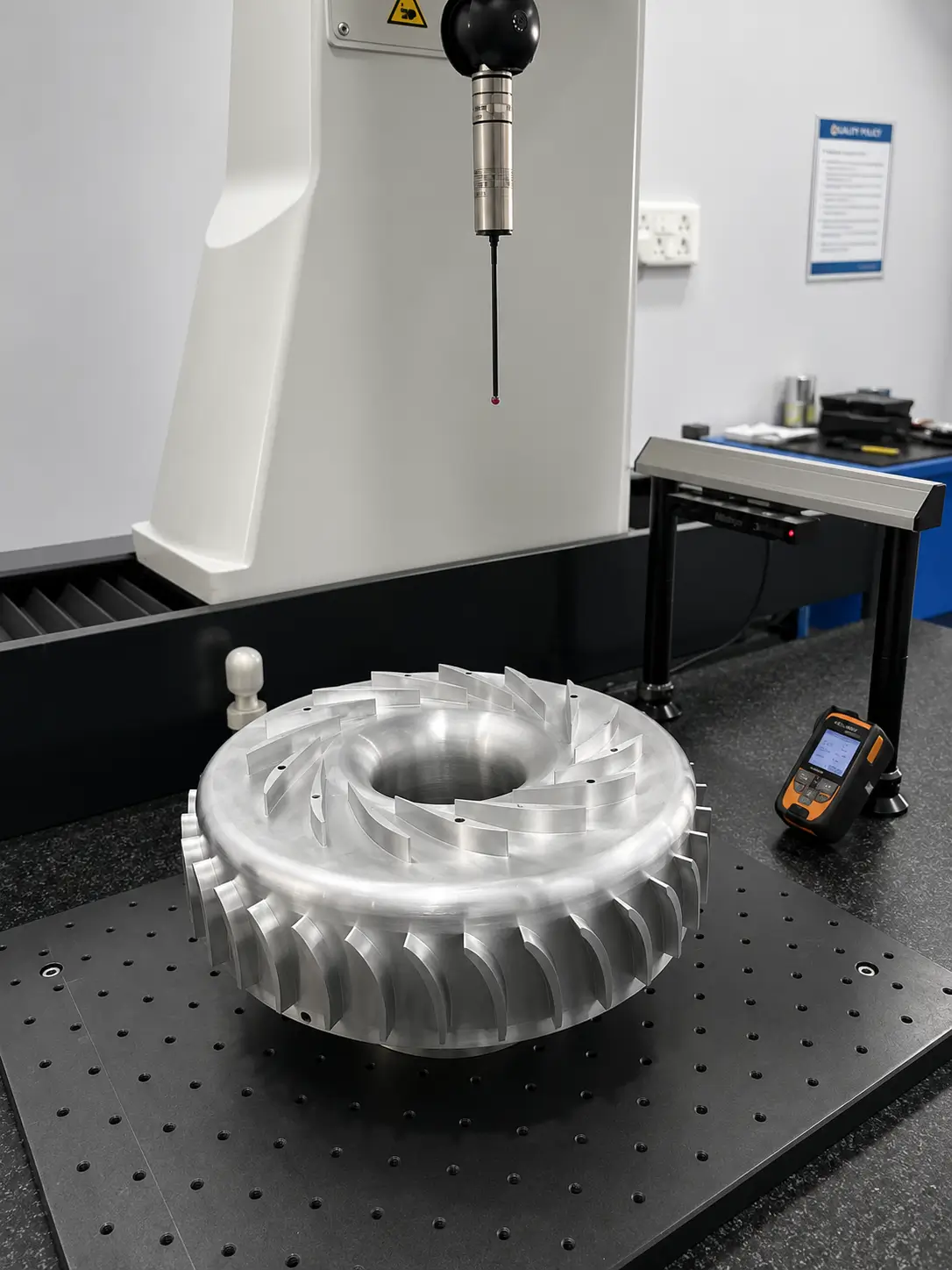

  • Component Inspection using the CAD model
  • Reverse Engineering and development of prototype samples
Documentation and Traceability:

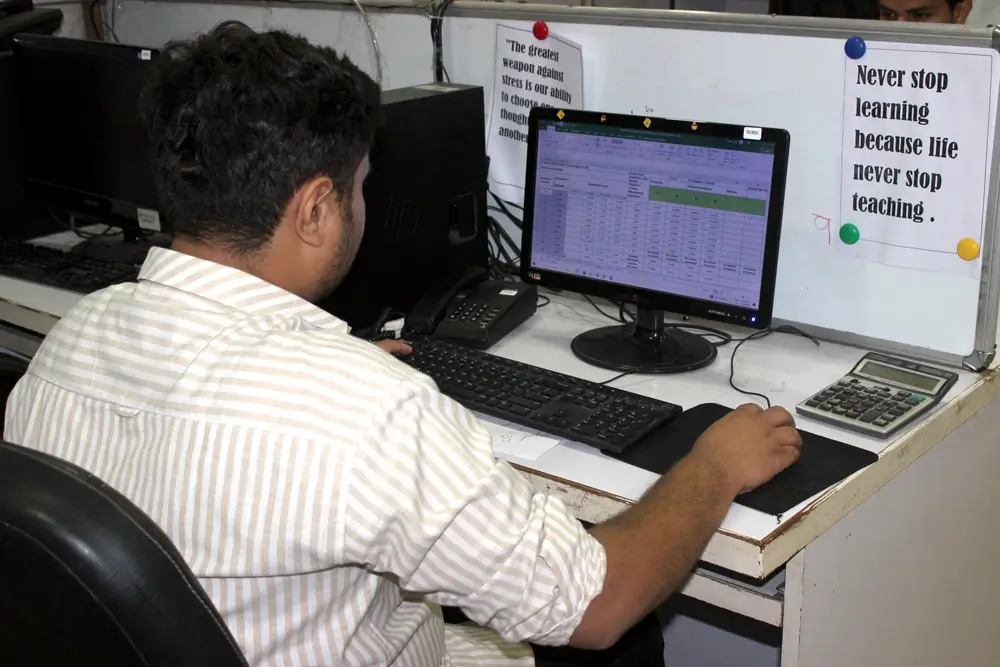

All the documentation and transaction are rooted using ERP dedicated to comply the requirement of AEROSPACE standards and other pre-requisites. This makes the Documentation and traceability easily recorded and retrievable.

A customer login and access to root their ongoing projects can also be granted on mutual agreement.
